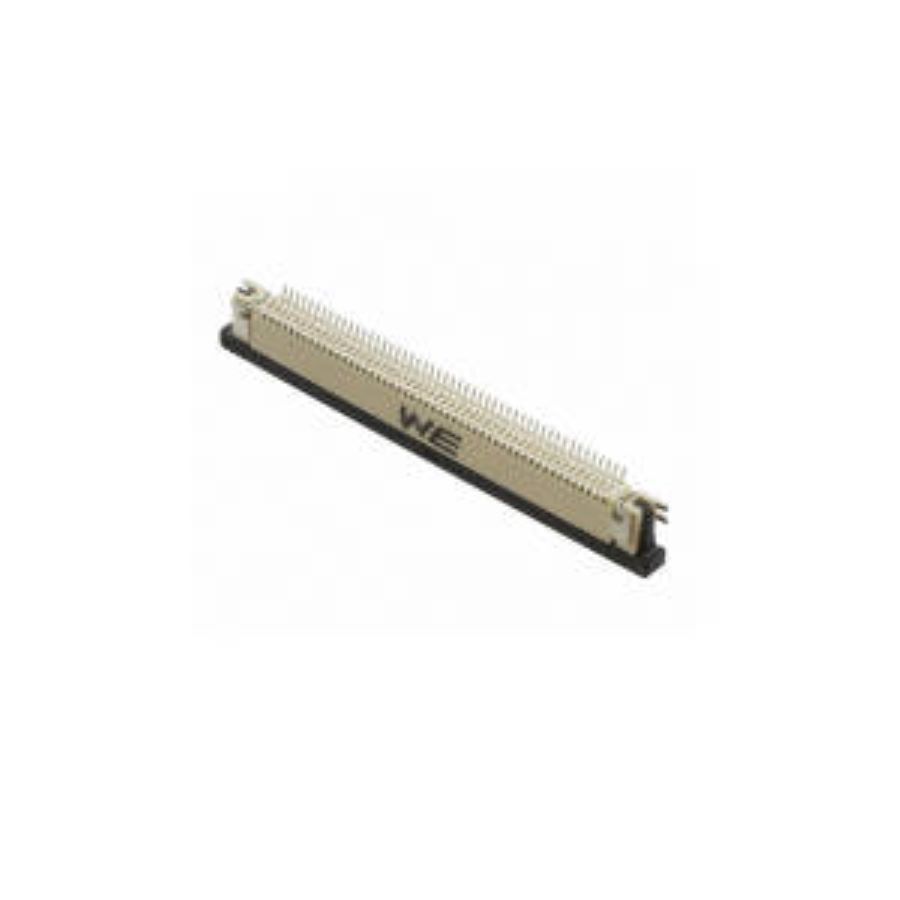

68715014522
Manufacturer:
Wurth Electronics
Mfr.Part #:
68715014522
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:50 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 31.4 mm |
| Width | 2.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 50 |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94V-0 |
| Orientation | Horizontal |
| Operating Supply Voltage | 50 V |
| Gender | Receptacle |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Housing Material | Liquid Crystal Polymer |
| Contact Location | Top |
| Contact Resistance | 20 mΩ |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Mounting Angle | Horizontal |
Stock: 1100
Distributors
pcbx
pcbxUnit Price$1.45851
Ext.Price$1.45851
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.45851 | $1.45851 |
| 10 | $1.40807 | $14.08070 |
| 25 | $1.36023 | $34.00575 |
| 50 | $1.31403 | $65.70150 |
| 100 | $1.21400 | $121.40000 |
| 300 | $1.16603 | $349.80900 |
| 500 | $1.11996 | $559.98000 |
| 1000 | $0.91392 | $913.92000 |
